Area 2: Design, synthesis and characterization of multidentate and multifunctional ligands

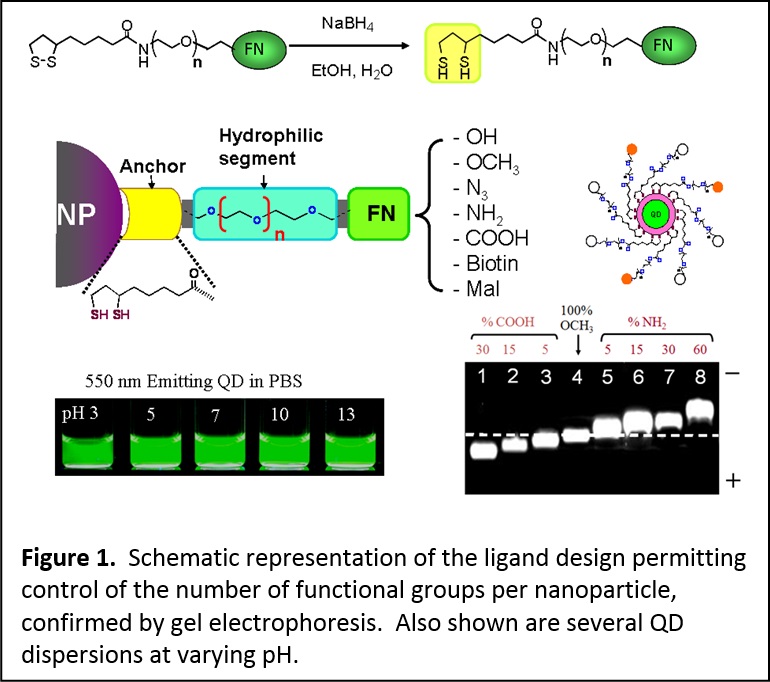

Figure 1.  Schematic representation of the ligand design permitting control of the number of functional groups per nanoparticle, confirmed by gel electrophoresis.  Also shown are several QD dispersions at varying pH.

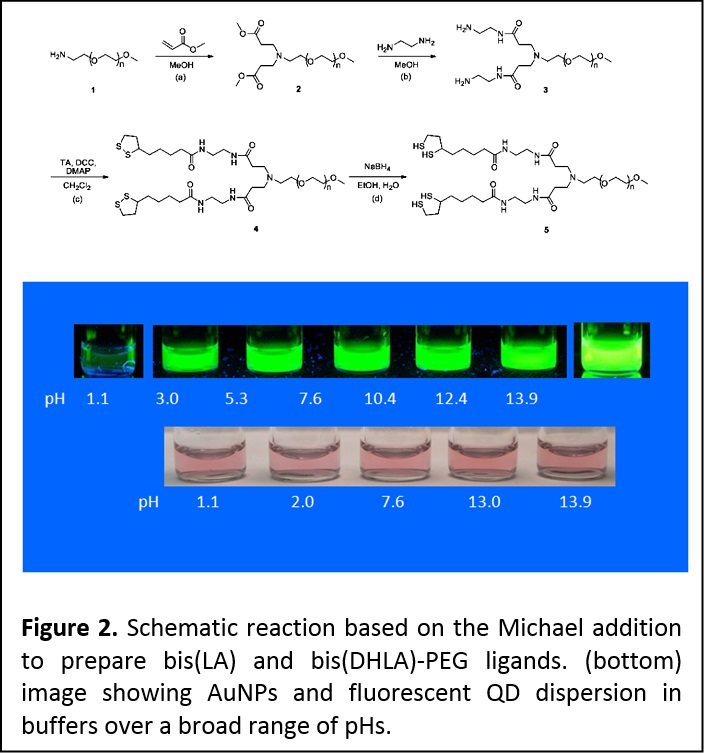

Figure 2. Schematic reaction based on the Michael addition to prepare bis(LA) and bis(DHLA)-PEG ligands. (bottom) image showing AuNPs and fluorescent QD dispersion in buffers over a broad range of pHs.

Over the past several years we have developed a few effective and versatile surface-functionalization strategies that employ, for instance, ligand exchange using modular multifunctional ligands. These designed ligands are molecular scale or oligomeric in nature and can be applied to metallic and semiconducting nanocrystals. In this design, mono- and bi-reactive tunable length polyethylene glycol (PEG) segment are appended at the end of the strong coordinating groups (namely, lipoic acid (LA)) or its reduced form, dihydrolipoic acid, DHLA). At the other end of the PEG we attach a variety of functional groups. This provides additional solubility and biocompatibility to nanoparticles cap-exchanged with such ligands. We have already demonstrated this rationale for preparing several LA- and DHLA-appended PEG ligands functionalized with azide, amine, carboxyl, alkyene, maleimide, and biotin. These ligands have provided an array of QDs and Au nanoparticles that are hydrophilic, surface reactive and stable over a broad range of biological conditions (Figure 1). (see J. Am. Chem. Soc. 2005, 127, 3870-3878. DOI: 10.1021/ja044031w; J. Am. Chem. Soc. 2007, 129, 13987-13996. DOI: 10.1021/ja0749744; J. Mater. Chem. 2008, 18, 4949-4958. DOI: 10.1039/b810488c)

We have further expanded this design to prepare a second set of poly(ethylene glycol)(PEG)-based ligands that contain two dithiolane or two DHLA anchoring groups (i.e., bis(LA)-PEG-OCH3 and bis(DHLA)-PEG-OCH3). Here, we relied on the Michael addition to create a branch point at the end of the PEG moiety and provide bis (LA) and bis (DHLA)-appended ligands attached to a single PEG chain. These ligands provide a remarkable improvement in the colloid stability for ZnS-overcoated QDs and metal nanoparticles such as those made of Au cores, e.g., at pHs ranging from 2 to 13 compared to the nanocrystals capped with monothiol- and dithiol-terminated analogues (Figure 2). (J. Am. Chem. Soc. 2010, 132, 9804-9813. DOI: 10.1021/ja102898d)

Figure 3. Schematic depiction of the OligoPEG-capped QDs along with fluorescence images of 3 color CdSe-ZnS QDs along with a series of images of yellow emitting QDs at different pHs.

More recently, we built on the above molecular scale PEG-based moieties and developed a new set of multifunctional, multidentate OligoPEG ligands. The oligomers are made of a central short backbone on which were laterally grafted several short poly(ethylene glycol) (PEG) moieties appended with either lipoic acid (LA) or terminally reactive groups. Reduction of the LAs (e.g., in the presence of NaBH4) provides dihydrolipoic acid (DHLA) appended-oligomers. Here the insertion of PEG segments in the ligand structure promotes water solubility and reduces non-specific interactions once introduced in a biological system, while LA and DHLA groups provide multidentate anchoring onto Au nanoparticles (AuNPs) and ZnS-overcoated semiconductor quantum dots (QDs), respectively. Water soluble QDs and AuNPs capped with these ligands were prepared via cap exchange. As prepared, the nanocrystal dispersions are aggregation-free, homogeneous and stable for extended period of times, over pH ranging from pH ~2 to ~14 and in presence of excess electrolyte (2 M NaCl) (Figure 3). The new OligoPEG ligands also allow easy integration of tunable functional and reactive groups within their structures (e.g., azide or amine), which imparts surface functionalities to the nanocrystals and opens up the possibility of bioconjugation with specific biological molecules. (Langmuir 2012, 28, 2761−2772. DOI: 10.1021/la203968t)

Figure 4. Schematic depiction of the OligoPEG-capped Fe3O4 NPs along with a few dispersion in DI water and buffers at varying pHs.

Using the same rationales, we have prepared and tested another set of multidentate catechol (Dopamine)- and polyethylene glycol (PEG)-derivatized oligomers, OligoPEG-Dopa. These OligoPEG-Dopa ligands promote enhanced affinity to iron oxide nanocrystals. As for QDs above, the ligands consist of a short backbone laterally appended with several catechol anchoring groups and several terminally-functionalized PEG moieties to promote affinity to aqueous media and to allow further coupling to target molecules (bio and others). The ability of these catechol-functionalized oligomers to impart long term colloidal stability to the nanoparticles is compared to other control ligands, namely oligomers presenting several carboxyl groups, and monodentate ligands presenting either one catechol or one carboxyl group. Overall, we found that the OligoPEG-Dopa ligands provide rapid ligand exchange and the resulting nanoparticles exhibit greatly enhanced colloidal stability over a broad pH range and in the presence of excess electrolytes; stability is notably improved compared to non-catechol presenting molecular or oligomer ligands (Figure 4). By inserting controllable fractions of azide-terminated PEG moieties, the nanoparticles (NPs) become reactive to complementary functionalities via azide-alkyne cycloaddition (Click), which opens up the possibility of biological targeting such stable NPs. We also measured the MRI T2 contrast of the OligoPEG-capped Fe3O4 nanoparticles and applied MTT (3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide) to test the potential cytotoxicity of these NPs to live cells; we found no measurable toxicity to live cells.

The above oligomer design allows easy reactions with target molecules (bio and such) for further functionalization of the nanocrystals. For example, starting with amine-modified OligoPEG-DHLA-QDs, we applied maleimide to cysteine coupling to attached specific peptides (see area 3); amines were modified to maleimide using NHS-Maleimide linker. Similarly, we applied “Click” chemistry to assemble several copies of alkyne-modified dyes onto azide-presenting Fe3O4 nanoparticles capped with OligoPEG-dopa. (ACS Nano 2012, 6, 389–399. DOI: 10.1021/nn203735b) We have also been developing robust coupling chemistries to assemble various proteins, peptides and other biological systems onto the surface functionalized nanoparticles outlined above (see area 3).

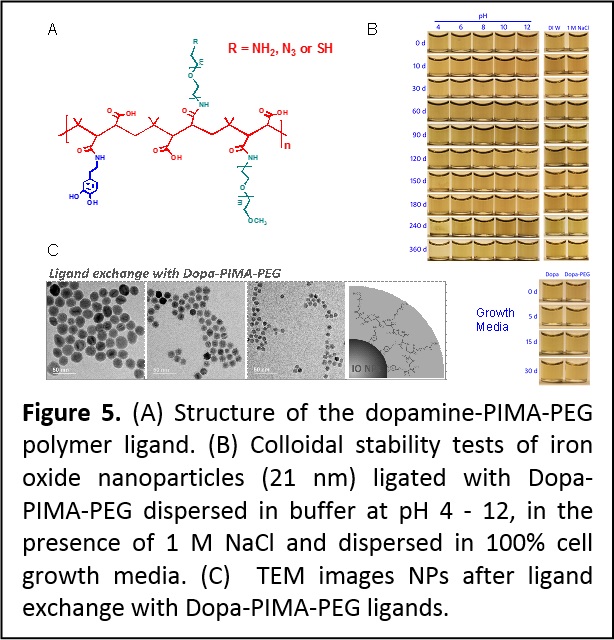

Figure 5. (A) Structure of the dopamine-PIMA-PEG polymer ligand. (B) Colloidal stability tests of iron oxide nanoparticles (21 nm) ligated with Dopa-PIMA-PEG dispersed in buffer at pH 4 - 12, in the presence of 1 M NaCl and dispersed in 100% cell growth media. (C)  TEM images NPs after ligand exchange with Dopa-PIMA-PEG ligands.

To improve the multi-catechol ligand design we explored the use of the nucleophilic addition reaction to optimize the design of a set of amphiphilic multi-coordinating polymers suited for surface-functionalizing iron oxide and potentially other magnetic nanoparticles (Figure 5). The amphiphilic polymers were prepared by coupling several amine-terminated dopamine anchoring groups, polyethylene glycol moieties and reactive groups onto a poly(isobutylene-alt-maleic anhydride) (PIMA) chain. This design greatly benefits from the highly-efficient and reagent-free one-step reaction of maleic anhydride groups with amine-containing molecules. Iron oxide nanoparticles ligand-exchanged with these polymer ligands have compact hydrodynamic size and exhibit enhanced long-term colloidal stability over the pH range 4 – 12 and in presence of excess electrolytes (Figure 5). Nanoparticles ligated with terminally reactive polymers have been easily coupled to target dyes and tested in live cell imaging with no measurable cytotoxicity. Finally, the resulting hydrophilic nanoparticles exhibit large and size-dependent r2 relaxivity values. (Langmuir 30, 6197−6208 (2014). DOI: 10.1021/la500974r)

Figure 6. (A and B) Panels showing white light and fluorescent images (collected using hand-held UV lamp, with exc = 365nm) of vials containing biphasic mixture of QDs in hexane (top phase) and LA-based ligand in methanol (bottom phase), before and after UV irradiation; (A) and (B) correspond to the procedures carried out using LA-PEG and LA-ZW ligands, respectively; the final QD dispersions in DI water are shown.

Photo-Induced Phase Transfer of Luminescent Quantum Dots to Polar and Aqueous Media. We have developed a new, effective and simple to implement photo-mediated strategy for the phase transfer of luminescent quantum dots and potentially other inorganic nanocrystals, from hydrophobic solutions to polar and hydrophilic media; this strategy is effective and simple to implement. In particular, we demonstrate that UV-irradiation (λ < 400 nm) promotes the in-situ ligand exchange on hydrophobic CdSe QDs with lipoic acid (LA)-based ligands and their facile QD transfer to polar solvents and buffer media (Figure 6). This convenient method obviates the need to use highly reactive agents for chemical reduction of the dithiolane groups on the ligands. It maintains the optical and spectroscopic properties of the QDs, while providing high photoluminescence yield and robust colloidal stability in various biologically-relevant conditions. Furthermore, development of this technique significantly simplifies the preparation and purification of QDs with sensitive functionalities such as azide or aldehyde (J. Am. Chem. Soc. 2012, 134, 16370–16378. DOI: 10.1021/ja306621n).

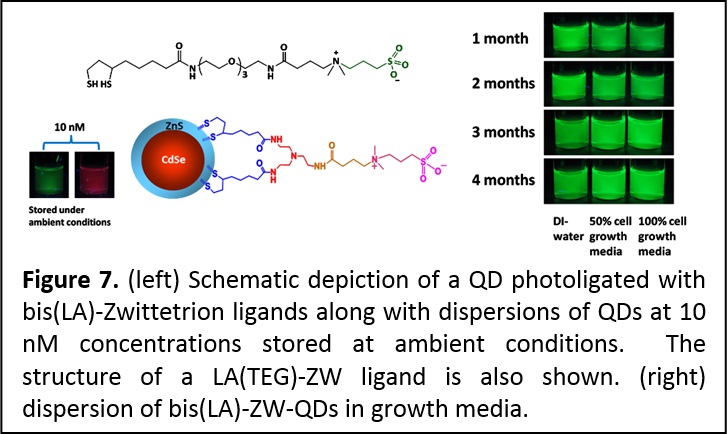

Figure 7. (left) Schematic depiction of a QD photoligated with bis(LA)-Zwittetrion ligands along with dispersions of QDs at 10 nM concentrations stored at ambient conditions.  The structure of a LA(TEG)-ZW ligand is also shown. (right) dispersion of bis(LA)-ZW-QDs in growth media.

Multidentate and Zwitterionic-appended Ligands Provide Compact and Biocompatible Quantum Dots. Hydrophilic and functional semiconductor nanocrystals that are stable at very small concentrations and under ambient conditions (room temperature and light exposure) and compact provide greatly promising for use in bio-inspired applications. We designed a set of metal coordinating ligands where we combined one or two lipoic acid groups (as a multi-coordinating anchor) with a zwitterion group for water compatibility (Figure 7). These ligands were combined with the new photoligation strategy (introduced above) to promote the transfer of CdSe-ZnS QDs to buffer media. In particular, we found that the QDs photoligated with this zwitterion-terminated bis(lipoic) acid exhibit great colloidal stability over a wide range of pHs, to excess of electrolytes, in the presence of growth media and reducing agents. These QDs are also stable at nano-molar concentrations and under ambient conditions (room temperature and white light exposure), a very promising property for fluorescent labeling in biology. In addition, the compact ligands permitted the metal-histidine self-assembly between QDs photoligated with bis(LA)-ZW and two different His-tagged proteins (see area 3). The remarkable stability of these QDs combined with the compatibility with metal-histidine conjugation, are greatly useful for applications, ranging from protein tracking and ligand-receptor binding to intracellular sensing using energy transfer interactions (ACS Applied Mater. Interfaces 2013, 5, 2861−2869. DOI: 10.1021/am302788q; J. Am. Chem. Soc. 2013, 135, 13786-13795. DOI: 10.1021/ja405010v).

Figure 8. (left) Schematic of several polymer ligands built on the PIMA platform combined with the use of the nucleophilic addition reaction; shown are ligands relying on lipoic acid, imidazole and dopamine anchors combined with PEG and zwitterion hydrophilic blocks. (right) schematics of a nanoparticle coated with poly-imidazole/zwitterion ligands.

Development of PEG and Zwitterion-appended Polymer Ligands. Controlling the interactions between nanoparticles and biological systems is essential for the effective use of these materials in imaging, sensing, and delivery applications. Such control depends, to a large extent, on one’s ability to conjugate those materials to target molecules. Equally important is the long term colloidal stability and the overall hydrodynamic dimensions of the nanocrystals in biological media. We have developed a new set of polymers as multifunctional, metal-coordinating ligands ideally adapted to surface functionalize QDs, iron oxide nanoparticles and gold nanoparticles/nanorods. The ligand design relies on the introduction of multiple anchoring groups, hydrophilic moieties and reactive functionalities into a polymer chain, via one-step nucleophilic addition reaction (Figure 8). This surface functionalization route yields nanocrystals that exhibit long-term colloidal stability over a broad range of biological conditions, such as pH changes and when mixed with growth media, while preventing corona formation. When zwitterion groups are used as the hydrophilic blocks (instead of PEG), this provides compact nanocrystals that are compatible with conjugation to proteins promoted by metal-to-polyhistidine self-assembly. The facile introduction of amine-containing molecules in the reaction permitted in-situ functionalization of the polymer ligands with an array of reactive groups (carboxylic acid, amine, azide, and biotin). This facilitates the subsequent assembly of nanoparticle with biomolecule using different bio-orthogonal coupling chemistries. Furthermore, this synthesis route has allowed the insertion of target biomolecules in-situ (during ligand synthesis). This allows combining hydrophilic modification and bioconjugation of the QDs in one step. The platforms prepared using this coating strategy have a great potential for use in a variety of biological applications such as fluorescence imaging of tissue and cells, and improving magnetic contrast imaging (Faraday Discussions 2014, 175, 137–151. DOI: 10.1039/c4fd00154k; J. Am. Chem. Soc., 2015, 137, 16084−16097. DOI: 10.1021/jacs.5b10359; J. Am. Chem. Soc. 2015, 137, 14158–14172. DOI: 10.1021/jacs.5b08915.
